C3-400 for access controller control 4 doorsTCP/IP with power protect box door access control board


ZKSoftware’s C3-400 Access Sytems are built on flexible, open technology to provide management, real-time monitoring and control of your access control system – all from a browser with no additional software to install.
Secure web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. These versatile design features take care of present and future needs with ease and efficiency, and the systems are some of the most rugged and reliable controllers on the market, with a multitude of built-in features.  SDK(Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.


Features:

*Multiple hardware protection measure

There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.

*Integration with Other Security Systems
C3-400 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.

*Supports different Wiegand reader
The controller support different wiegand format, and can Connect to different reader, including ID card reader, MF card reader and HID reader etc.

*Input/Output Ports to Control Doors
connect with variety of sensors, alarms, exit buttons, electric lock and other devices.

*Variety of Communication Function
Using either serial or TCP/IP communication, it provides reliable network system

*B/S structure software
It is easy to manage the system by browser from client PC.

*Normal open after first punch card can be setup

*Real-time Monitoring of Door status
Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.

*Simple Access Control System Configuration

*Interlock function
Link different doors with special logic that one door is Open, others should be closed.

*Multi-card operation
This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.

*Anti-Passback

*Duress Mode

*SDK available
The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.



Specifications:

Model
C3-400
CPU
32bit MIPS CPU
RAM
32M bits
Flash Memory
256M bits
User
30,000
Event Buffer
100,000
Power / Current
DC 9.6V-14.4V, Rated Max.1A
Reader Port
4ea (26bit Wiegand, 8bit Burst for PIN)
Communication
RS485, TCP/IP
Baud Rate
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port
12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door Sensor#2, Door Sensor#3, Door Sensor#4, Aux#1, Aux#2, Aux#3, Aux#4)
Output Port

4ea (4 FORM-C Relay Output, SPDT 5A36VDC/8A30VAC)
4ea (4 Aux FORM-C Relay Output, SPDT 2A30VDC)
LED Indicator
Yes, LED indication for communication, power, status and punch card
Operating Temperature
0to +55C
Operating Humidity
10% to 80% relative humidity non-condensing
Dimension (L*W)mm
218(W)*106(H)(single board )

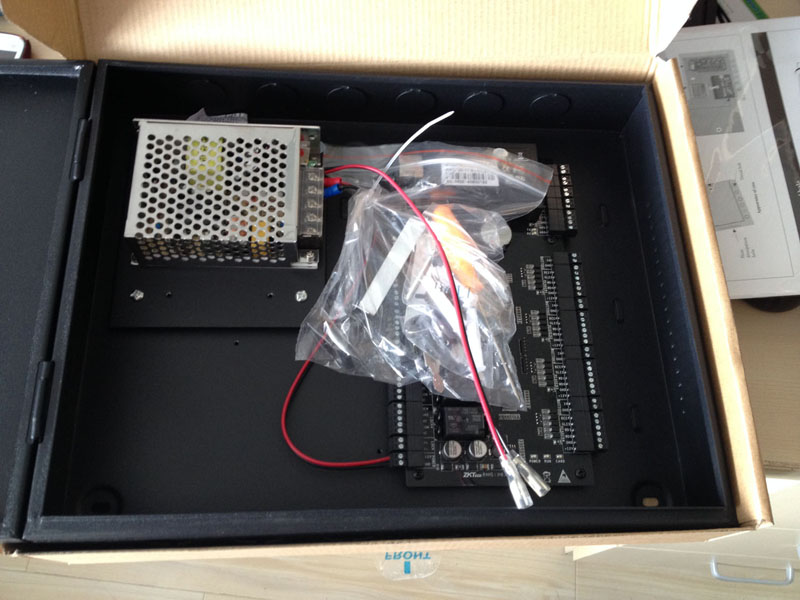

345(W)*275(H)*70(D)(with power supply and metal box)
Certification
CE, FCC, RoHS
